Millbrook Automation is a local distributor of Yaskawa drives, motors, and many other electrical components. We serve end users and Original Equipment Manufacturers in the water, chemical, pulp and paper, power generation, material handling and other industries.
As a Yaskawa distributor, we are dedicated to our customer satisfaction and providing the best-in-class products and solutions. Our extensive range of Yaskawa AC Inverter Drives ensures that we can meet the needs of all our customers. Our team is always ready to assist with any questions you may have about Yaskawa products or solutions.
|
| |
| |
 Yaskawa VFDs (Variable Frequency Drives) are electronic devices used to control the speed and torque of AC electric motors. They are used in a wide range of applications, including industrial machinery, HVAC systems, pumps, and fans. They allow for precise control over motor speed and torque, which can result in energy savings, improved efficiency, and increased productivity.
Yaskawa Offers several types of AC Motors that are available in various enclosures as well as a broad range of HP.
As a Yaskawa distributor we strive to maintain our position as a leader in the industry. Millbrook Automation works closely with Yaskawa to deliver innovative machine controller solutions that improve efficiency and performance. We also provide comprehensive support to our customers, including training and education, to enable them to get the most out of their Yaskawa drives.
|
| |
GENERAL PURPOSE DRIVE |
Full featured & versatile variable speed drives for every automation application in an industrial plant. |
| |
|

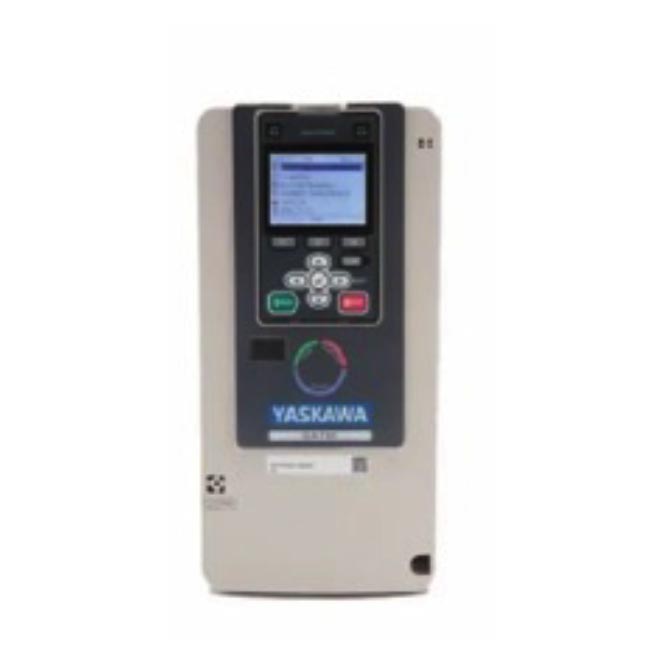

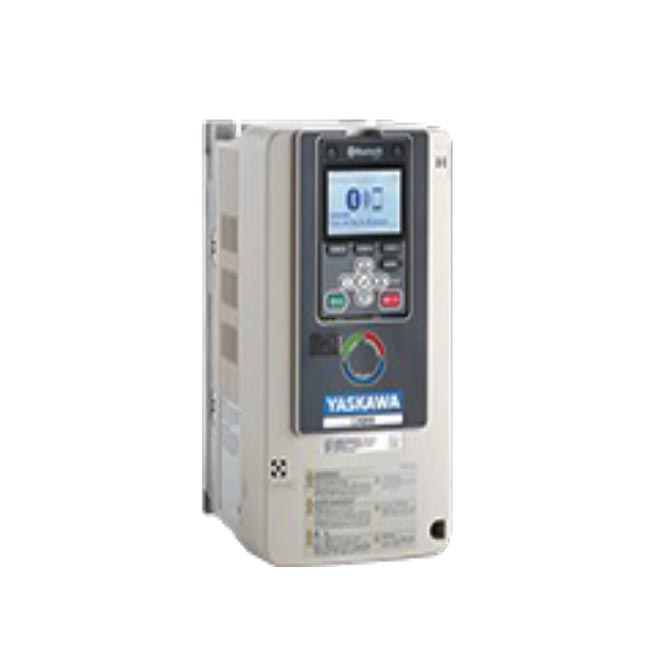

GA800 DRIVE
Premium Performance Vector and Mobile Device Enabled - 3/4 to 600 HP
THREE-PHASE INPUT SELECTION
1 to 150 HP 3 Phase 240 VAC
1 to 600 HP 3 Phase 480 VAC
|
75 to 600 HP 3 Phase, 12-Pulse, 480 VAC IP00
400 to 500 HP 3 Phase 600 VAC
|
| |
SINGLE-PHASE INPUT SELECTION
1/3 to 50HP Single-Phase Input, Three-Phase Output 240 VAC
1/3 to 150HP Single-Phase Input, Three-Phase Output 480 VAC
|
| |
GA800 CONFIGURED PACKAGES
1-600 HP Type 1, Type 12, & Type 3R GA800 Configured Packages
The GA800 Configured package provides a GA800 Drive in an industrial enclosure, with space for several commonly used options, such as reactors, RFI filters, circuit breakers, etc.
|
|
| |
|
|

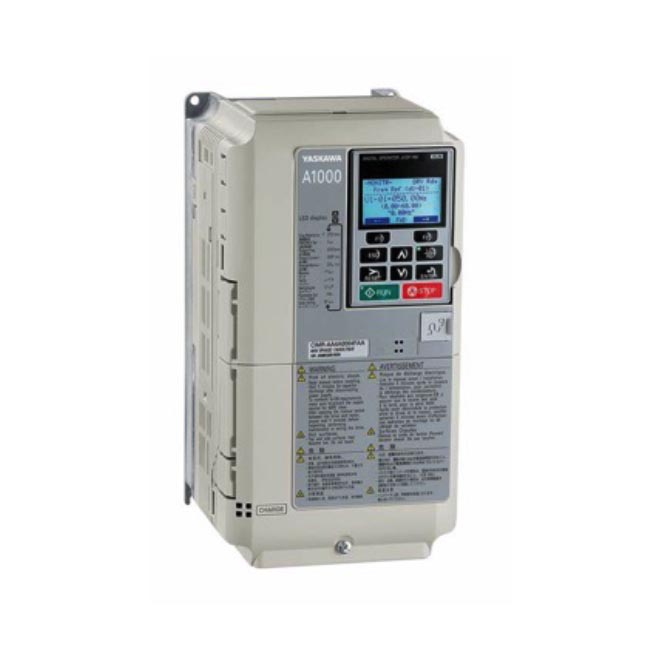

A1000 DRIVE
High Performance Vector and Full Featured – 3/4 to1000 HP
THREE-PHASE INPUT SELECTION
3/4 to 125 HP 3 Phase 240 VAC
3/4 to 1200 HP 3 Phase 480 VAC
|
1 to 250 HP 3 Phase 600 VAC
|
| |

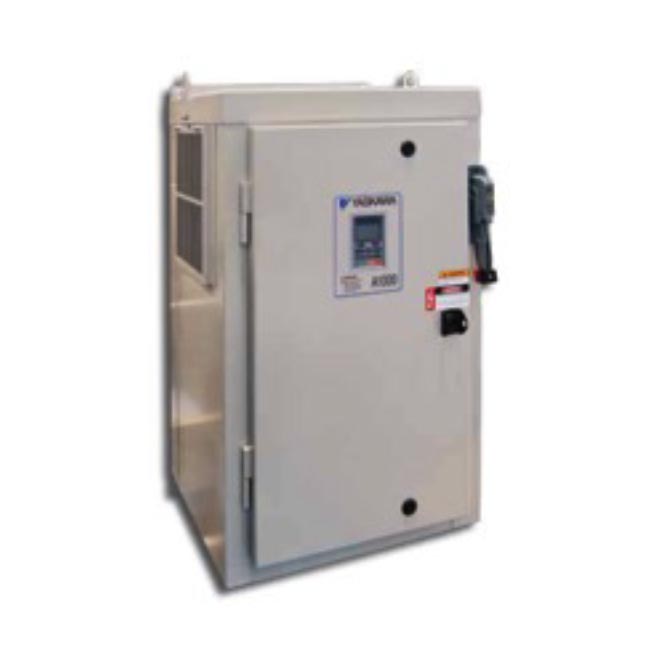

A1000 CONFIGURED PACKAGES
1-1000 HP Type 1, Type 12, & Type 3R A1000 Configured Packages
The A1000 Configured package provides a A1000 Drive in an industrial enclosure, with space for several commonly used options, such as reactors, RFI filters, circuit breakers, etc.
|
| |
|
| |
|
|
U1000 DRIVE
Low Harmonic, Regenerative, and High Performance Vector - 5 to 800 HP
THREE-PHASE INPUT SELECTION
5 to 75 HP 3 Phase 240 VAC
5 to 800 HP 3 Phase 480 VAC
|
| |
U1000 CONFIGURED PACKAGES
5 to 350 HP 3 Phase 480 VAC Type 1
5 to 150 HP 3 Phase 480 VAC Type 12
5 to 350 HP 3 Phase 480 VAC Type 3R
The U1000 Configured package provides a U1000 Drive in an industrial enclosure, with space for several commonly used options, such as reactors, RFI filters, circuit breakers, etc.
|
| |
|
| |
|
|

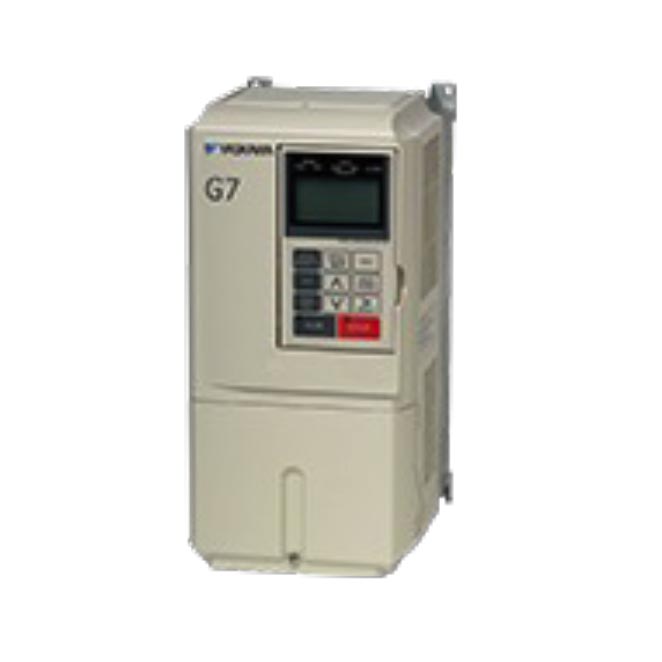

G7 DRIVE
Long Motor Cable Problem Solver and High Performance Vector - 1/2 to 500 HP
THREE-PHASE INPUT SELECTION
1/2 to 150 HP 3 Phase 240 VAC
3/4 to 500 HP 3 Phase 480 VAC
|
| |
G7 CONFIGURED PACKAGES
3/4 to 150 HP 3 Phase 240 VAC
3/4 to 500 HP 3 Phase 480 VAC
The G7 Configured package provides a G7 Drive in a NEMA 12 / NEMA1 2 FVFF enclosure, with space for several commonly used options, such as reactors, RFI filters, circuit breakers, etc. NEMA Type 3R and NEMA Type 4 are available as Custom-built to meet customer specification or installation requirements
|
| |
|
| |
|
MICRODRIVES |
AC Drive that provides superior performance within economical packages for basic applications. |
| |
|

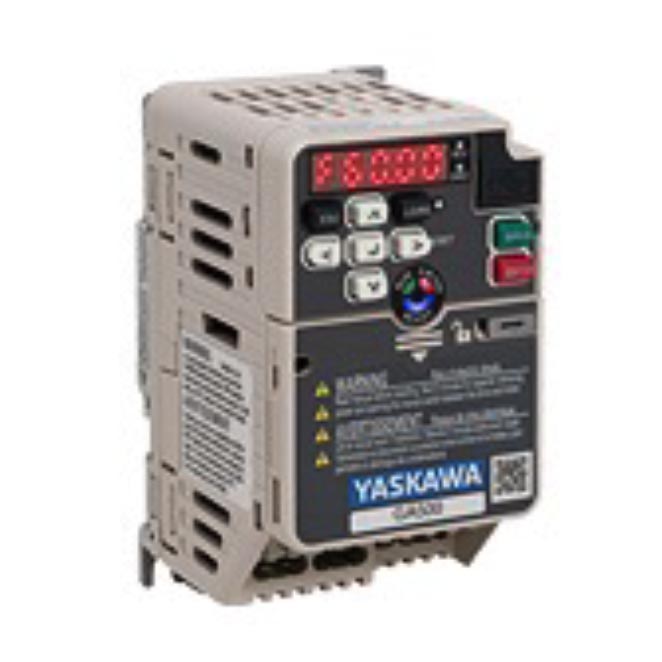

GA500 DRIVE
Designed for 10 years of maintenance-free operation - 1/6 to 40 HP
THREE-PHASE INPUT SELECTION
1/6 to 30 HP 3 Phase 240 VAC
1/6 to 40 HP 3 Phase 480 VAC
|
SINGLE-PHASE INPUT SELECTION
1/6 to 5 HP Single-Phase Input, Three-Phase Output 240 VAC
|
| |
|
| |
|
|

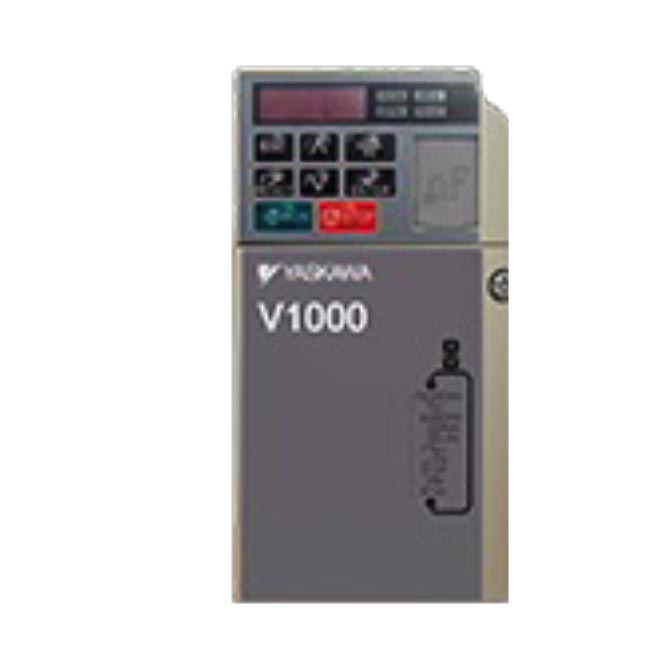

V1000 DRIVE
Compact Current Vector Drive - 1/8 to 25 HP
THREE-PHASE INPUT SELECTION
1/8 to 25 HP 3 Phase 240 VAC
1/2 to 25 HP 3 Phase 480 VAC
|
SINGLE-PHASE INPUT SELECTION
1/8 to 5 HP Single-Phase Input, Three-Phase Output 240 VAC
|
| |
|
| |
|
|

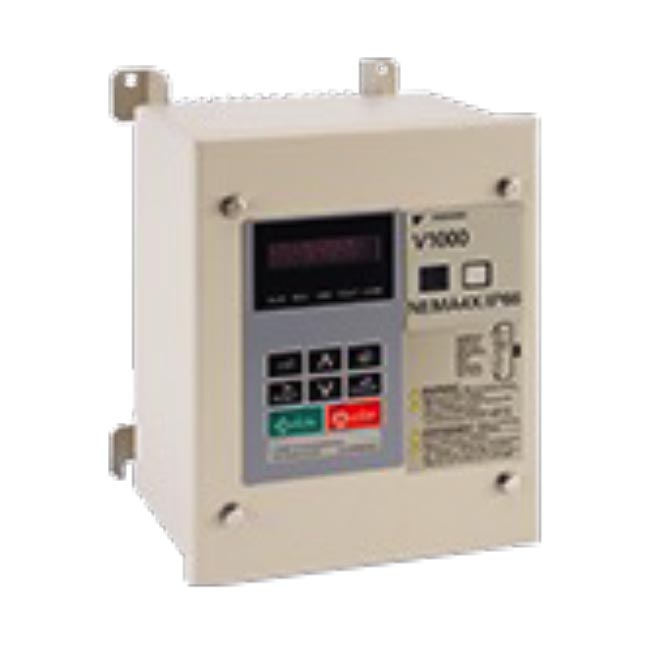

V1000 – 4X DRIVE
V1000 in Integral NEMA Type 4X/12 enclosure - 1/8 to 25 HP
THREE-PHASE INPUT SELECTION
1/8 to 25 HP 3 Phase 240 VAC
1/2 to 25 HP 3 Phase 480 VAC
|
SINGLE-PHASE INPUT SELECTION
1/8 to 5 HP Single-Phase Input, Three-Phase Output 240 VAC
|
| |
|
| |
|
FAN & PUMP DRIVES |
AC Drives designed for variable torque applications like fans and centrifugal pumps. |
| |
|
FP605 DRIVE
Enhanced Variable Torque Control - 3 to 600 HP
THREE-PHASE INPUT SELECTION NEMA TYPE 1
3 to 150 HP 3 Phase 240 VAC
3 to 600 HP 3 Phase 480 VAC
|
| |
THREE-PHASE INPUT SELECTION NEMA TYPE 12
3 to 40 HP 3 Phase 240 VAC
3 to 100 HP 3 Phase 480 VAC>
|
| |
THREE-PHASE INPUT SELECTION NEMA TYPE 12 w/Switch
3 to 40 HP 3 Phase 240 VAC
3 to 75 HP 3 Phase 480 VAC
Note: Power Option 240 VAC & 480 VAC Single Phase Converters Available
|
| |

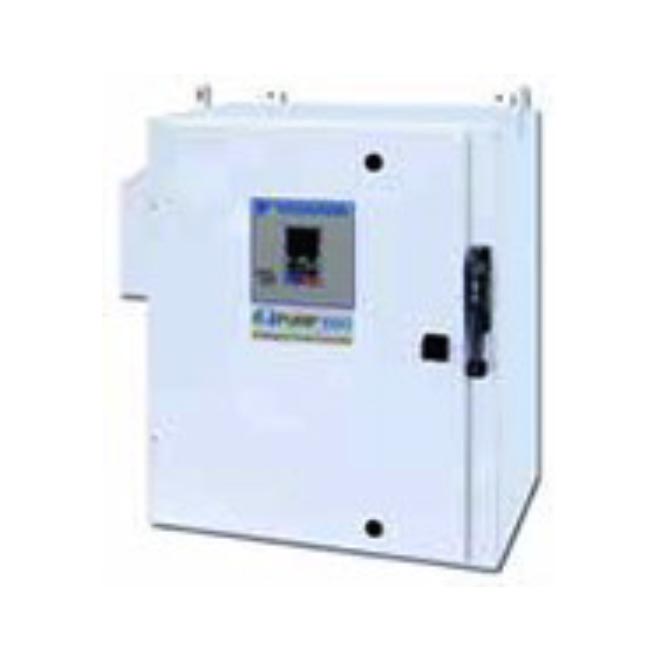

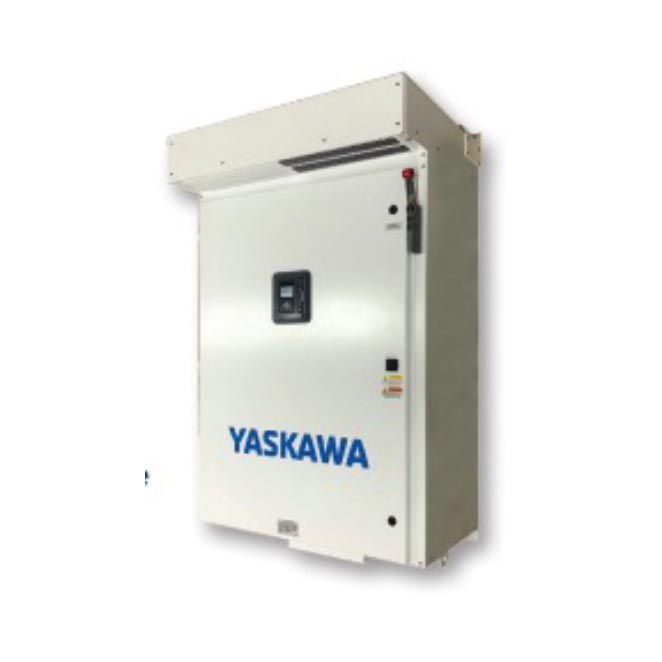

FP605 CONFIGURED PACKAGES
1-150 HP 208 VAC Type 1
1-150 HP 208 VAC Type 12
5-150 HP 208 VAC Type 3R
|
1-150 HP 240 VAC Type 1
1-150 HP 240 VAC Type 12
5-150 HP 240 VAC Type 3R
|
1-600 HP 480 VAC Type 1
1-600 HP 480 VAC Type 12
5-600 HP 240 VAC Type 3R
|
| |
|
The FP605 Configured package provides a FP605 Drive with a Bypass in an industrial
enclosure, with space for several commonly used options, such as reactors, RFI filters,
circuit breakers, etc.
|
FP605 BYPASS CONFIGURED PACKAGES
1-100 HP 208 VAC Type 1
1-150 HP 208 VAC Type 12
5-100 HP 208 VAC Type 3R
|
1-100 HP 240 VAC Type 1
1-100 HP 240 VAC Type 12
5-100 HP 240 VAC Type 3R
|
1-250 HP 480 VAC Type 1
1-250 HP 480 VAC Type 12
5-250 HP 240 VAC Type 3R
|
| |
|
|
| |
|
|
P1000 DRIVE
Control for variable torque loads (6 Pulse) – 3/4 to 1000 HP
Note: Select 12 Pulse option available
THREE-PHASE INPUT SELECTION NEMA TYPE 1
3/4 to 175 HP 3 Phase 240 VAC
1 to 1000 HP 3 Phase 480 VAC
1 to 250 HP 3 Phase 600 VAC
|
| |
THREE-PHASE INPUT SELECTION NEMA TYPE 12
3/4 to 175 HP 3 Phase 240 VAC
1 to 1000 HP 3 Phase 480 VAC
1 to 250 HP 3 Phase 600 VAC
Note: Power Option 240 VAC & 480 VAC Single Phase Converters Available
|
| |
P1000 CONFIGURED PACKAGES
1-150 HP 240 VAC Type 1
1-150 HP 240 VAC Type 12
1-150 HP 240 VAC Type 3R
|
1-1000 HP 480 VAC Type 1
1-1000 HP 480 VAC Type 12
1-1000 HP 480 VAC Type 3R
|
1-250 HP 600 VAC Type 1
1-250 HP 600 VAC Type 12
1-250 HP 600 VAC Type 3R
|
| |
|
The P1000 Configured package provides a P1000 Drive with a Bypass in an industrial
enclosure, with space for several commonly used options, such as reactors, RFI filters,
circuit breakers, etc.
|
P1000 BYPASS CONFIGURED PACKAGES
1-150 HP 208 VAC Type 1
1-150 HP 208 VAC Type 12
1-150 HP 208 VAC Type 3R
|
1-500 HP 480 VAC Type 1
1-500 HP 480 VAC Type 12
1-500 HP 480 VAC Type 3R
|
| |
|
|
| |
|
SYSTEM COMPONENTS |
Solutions to address your application power requirements. |
| |
|
D1000 REGENERATIVE CONVERTER UNIT
Low Harmonic & Regenerative Bi-Directional DC Bus Supply - 3/4 to 750 HP
THREE-PHASE INPUT SELECTION
5 to 150 HP 3 Phase 240 VAC
5 to 750 HP 3 Phase 480 VAC
The D1000 Regenerative Kit consists of a D1000, Input AC Reactor and PWM Filter Module.
|
| |
R1000 POWER REGENERATIVE CONVERTER UNIT
Transfers power during regeneration (not motoring) - 5 to 500 HP
| |
THREE-PHASE INPUT SELECTION
5 to 150 HP 3 Phase 240 VAC
5 to 500 HP 3 Phase 480 VAC
The R1000 Regenerative Kit consists of a R1000, Current Suppression Reactor, Power Coordination Reactor and Fuses.
|
| |
|
| |
|
AC MOTORS |
|
| |
|

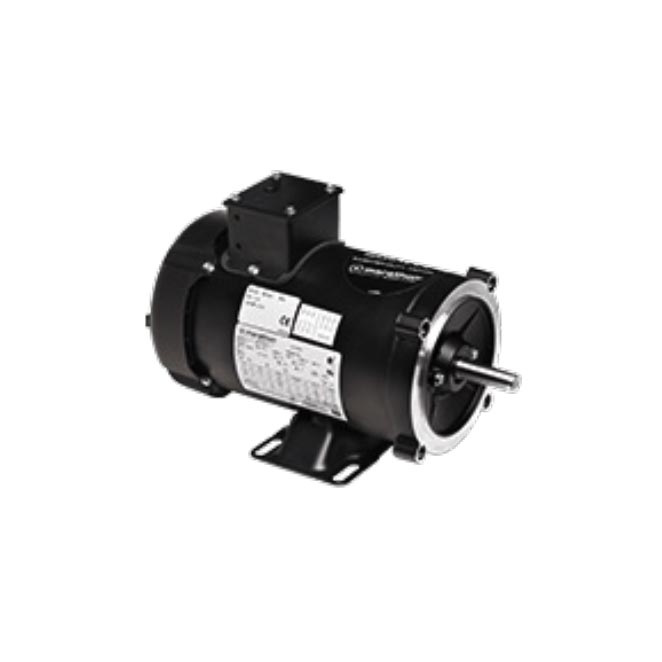

MicroMAX
1/8 to 10HP, Inverter Duty, TENV/TEFC
Inverter (Vector) duty motors offer 1000:1 constant torque (TENV), 20:1 constant torque (TEFC) in a totally enclosed design. This three phase motor is designed for direct replacement of PMDC or any other variable speed applications where up to 1000:1 constant torque speed range is required.
Typical uses include: Machine tools, Conveyors, Packaging machines, Batching machines, and Printing equipment.
|
| |
|
|

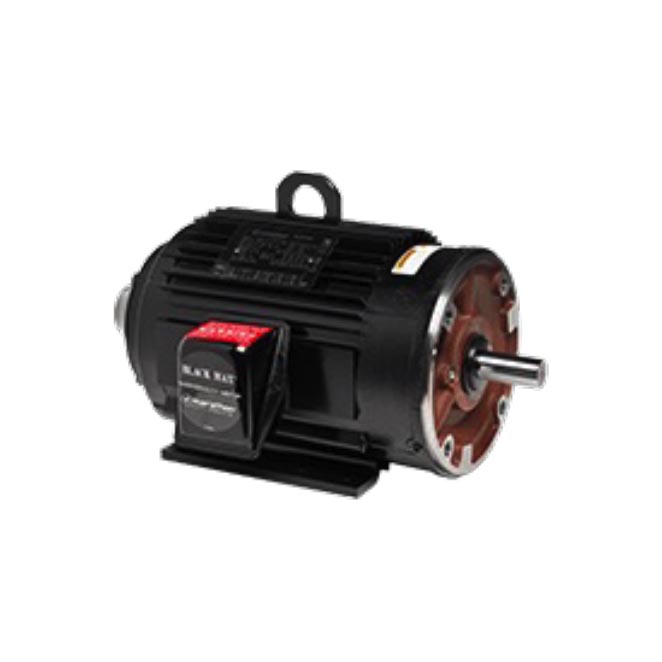

BlackMAX
1/4 to 30 HP, Inverter Duty, TENV, Three Phase
Inverter (Vector) duty motors offer 1000:1 constant torque (TENV). Three phase motor is designed for Inverter or Vector applications with up to 1000:1 constant torque speed range.
Typical uses include: Material handling, Machine tools, Conveyors, Crane and hoist, Metal processing, Test stands, Pumps, Compressors, Textile processing, and Industrial machinery installed in dusty or dirty environments.
|
| |
|
|

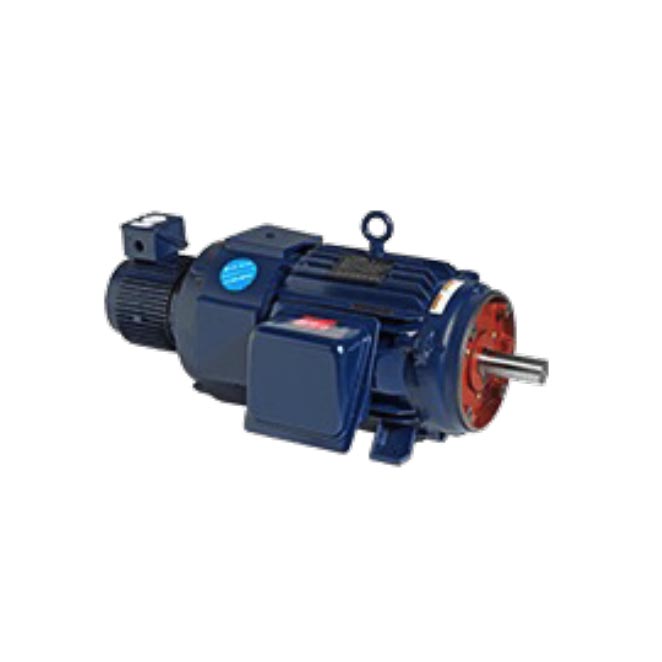

BlueMAX
1 to 350HP, Enclosed, Vector Duty
Totally enclosed, three phase motor designed for Inverter or Vector applications with up to a 2000:1 constant torque speed range.
Typical uses include: Material handling, Machine tools, Conveyors, Crane and hoist, Metal processing, Test stands, Pumps, Compressors, Textile processing, and Industrial machinery installed in dusty or dirty environments where cast iron construction is required.
|
| |
|
|
SyMAX
1/2 to 30 HP, Vector Duty Permanent Magnet AC
Permanent Magnet AC motors offer unique solutions for today’s demanding applications. This product’s unparalleled power density, unprecedented performance, and unmatched efficiency are another industry first.
|
| |
|
INDUSTRIAL SOFTWARE TOOLS |
|
| |
|
DriveWizard Industrial
The DriveWizard® Industrial support tool is a Windows-based PC program designed to commission and troubleshoot Yaskawa drives.
|
| |
|
|
DriveWizard Mobile with Yaskawa Drive Cloud
Start-up, adjust, and monitor Yaskawa's AC drives with your smartphone or tablet. Use DriveWizard® Mobile to backup, store, and retrieve your drive settings locally or to your personal Yaskawa Drive CloudTM account. DriveWizard Mobile is the mobile app version of Yaskawa's DriveWizard® PC Tools.
|
| |
|
|
DriveWorksEZ Software
Software tool that provides the means to create custom logic and mathematic functionality inside the Yaskawa drives. User-friendly program monitoring is included for fast, easy start-up and troubleshooting.
|
| |
|
|
Product Selector
Designed to be intuitive and gives the correct drive for your application. Through a series of simple questions (motor voltage, motor HP), it will provide a list of recommended drives that are suitable for your application. Compare and contrast the drives to narrow down your search.
|
| |
|
|
Programming Simulators
Realistic simulation of the programming and operation of a Yaskawa drive. All major functions of the drives are simulated by these PC tools with the addition of I/O, trending, diagnostic operations.
|
| |
|
|
Energy Savings Predictor
Accurately predicts the energy saved when Yaskawa VFDs replace conventional mechanical control processes. The software provides a payback analysis (ROI) that is a direct result of installing Yaskawa VFDs and it predicts Carbon Footprint / Emissions with a Calculation Module that includes CO2 Emissions. The software includes a project management module to support single or multiple systems of varied sizes. Simply input utility information and system specifics to generate a professional report.
|
| |
|
|
Harmonics Estimator
Estimate harmonics at the Point of Common Coupling (PCC) utilizing the drive to select the proper mitigation solution.
|
